Fluidized bed granulation and coating equipment for guanidine acetic acid granule - rumen passing guanidine acetic acid

Fluidized bed granulation and coating equipment for guanidine acetic acid granule - rumen passing guanidine acetic acid - feed additive

Guanidine acetic acid is a white or yellowish crystalline powder, soluble in water and very slightly soluble in ethanol and ether.Guanidine acetic acid is mainly used in pharmaceutical intermediates, also can be used as food and feed additives, to improve the production performance, improve the meat quality and promote energy metabolism plays an important role in such aspects, moreover can also prevent bacterial infection, strengthen the animal immune function, low thermal stress reduction effects on animals, thereby reducing the mortality of animals under the environment of high temperature.

(1) Pretreatment with guanidine acetic acid

The powder guanidine acetic acid was first ultrafine crushed, and then was sorted by 80-mesh sieve by shaking and grading, and 80 mesh guanidine acetic acid was taken as raw material.

(2) Preparation of guanidine acetic acid pellet core

After grinding and screening, the guanidine acetic acid powder and the gelatinized solution with a concentration of 40% were mixed evenly in the mixer. After being extrudated into granules by the swinging granulator, the granules were added to the circular throwing machine to form spherical particles. The spherical particles were swayed through the 40-mesh screen, sorted by grading and screened, and then put into the boiling dryer to obtain the pellet core.

(3) guanidine acetic acid was precoated

The guanidine acetic acid pellet core is put into the pellet coating machine for initial coating, and the pellet core is coated through the bottom spraying system of the coating machine until all spraying is completed.After coating, the pellet core was obtained by shaking the whole pellet through 30-mesh screen and grading screening.

(4) guanidine acetic acid was secondary coated

The screened initial coated core particles were placed in a fluidized bed coating machine, and vegetable oil was used as the coating material to perform secondary coating on the initial coated core through the bottom spray system of the fluidized bed coating machine.After the secondary coating, more than 40 mesh guanidine acetic acid was obtained by swinging sorting and grading screening.

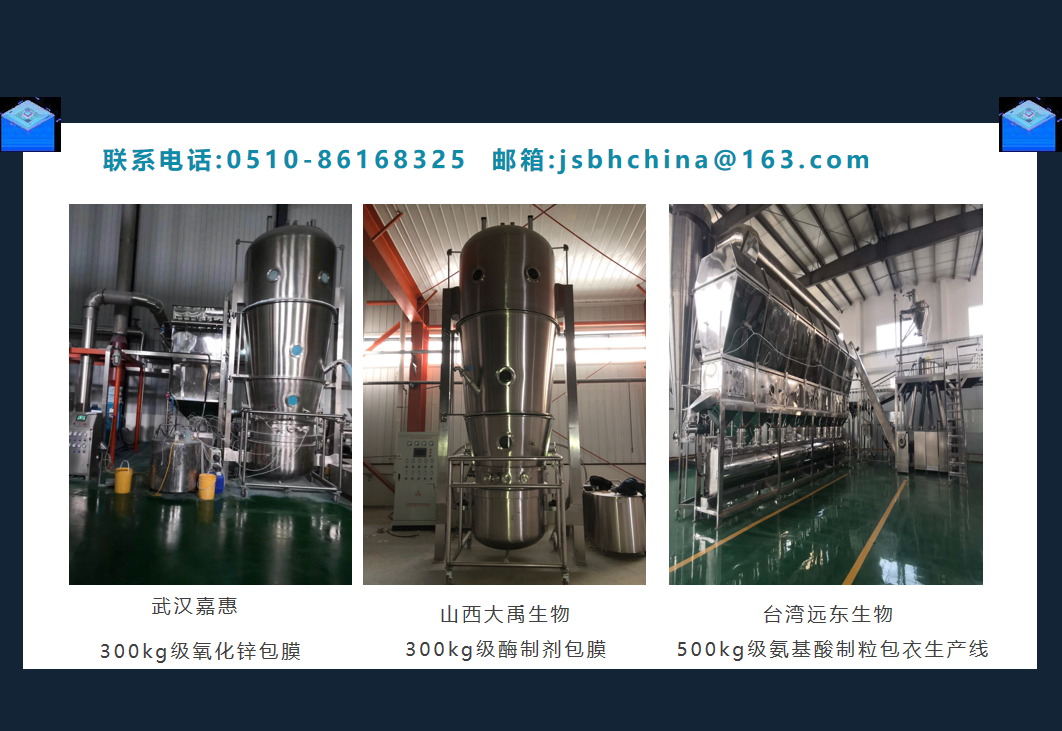

Jiangsu bohong is a professional enterprise engaged in the research, development, production and sales of pellet, pellet, pellet coating, drying and material airtight conveying equipment for livestock, poultry, aquatic products and ruminants premix and additives.Bohong company has strong technical force, with senior engineers, engineers and other engineering and technical personnel more than a dozen;The company is equipped with advanced, complete processing equipment and advanced processing technology.
